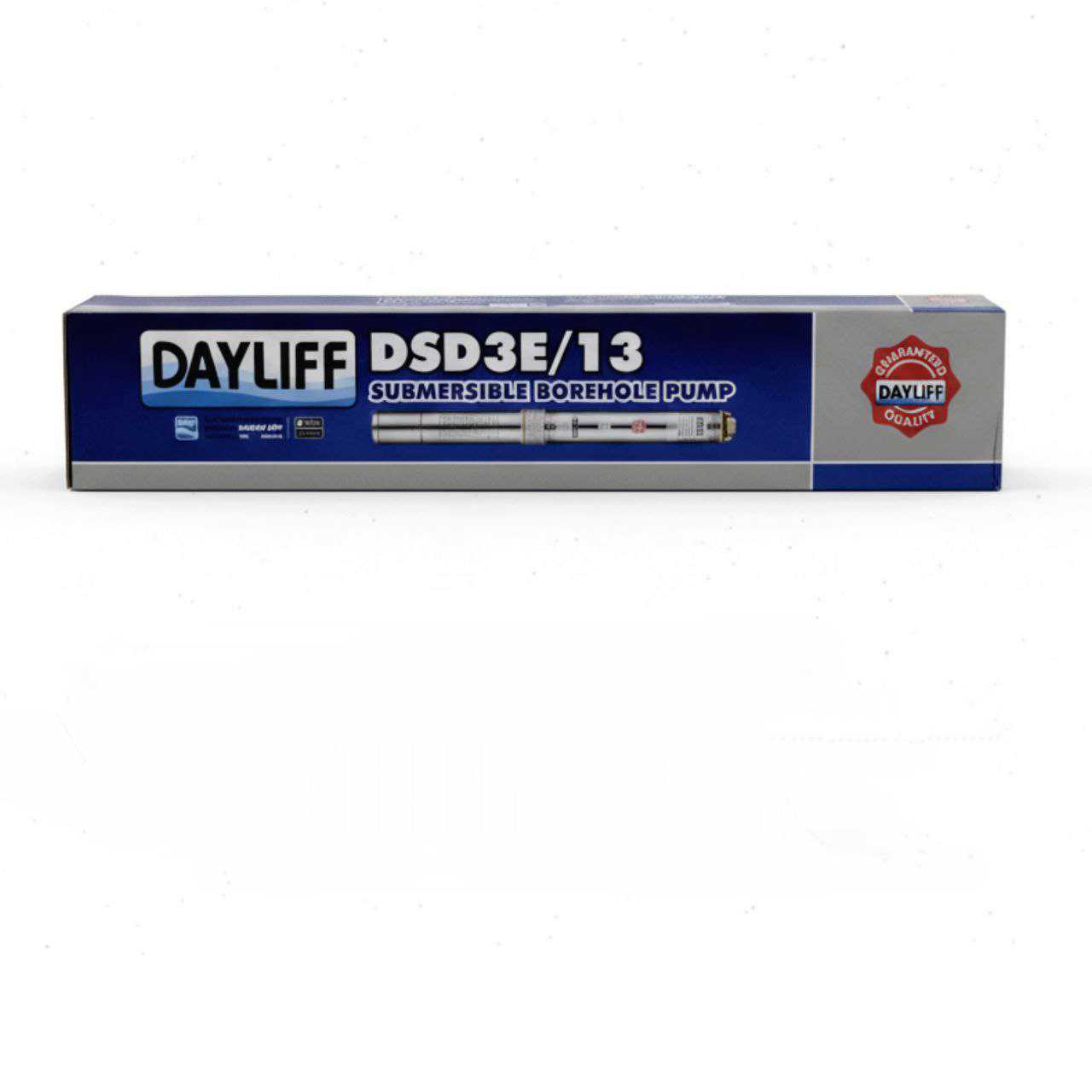

DAYLIFF Dsd 3e/13 submersible water pump 1hp

Original price was: KSh 30,000.00.Current price is: KSh 27,500.00.

Key Specifications (DSD 3/13 – Single Phase)

Specification	Value
Pump Type	Submersible Multistage Centrifugal (Borehole)
Power (P2)	$0.75 \text{ kW}$ ( $\approx 1.0 \text{ HP}$ )
Voltage	Single-phase, $1 \times 240 \text{ V}$
Max Flow Rate (Q)	Up to $3.5 \text{ m}^3/\text{h}$ ( $\approx 58 \text{ L/min}$ )
Max Head (H)	Up to $93 \text{ m}$ (or $100 \text{ m}$ depending on the curve point)
Outlet Size	$1.25 \text{ inch}$ (DN 32)
Min. Borehole Diameter	$110 \text{ mm}$ (or $4 \text{ inches}$ )
Max Immersion Depth	Up to $80 \text{ m}$

Add to wishlist

Category: Pumps Tags: Dsd 3e/13, Submersible Water Pump

Description

The DAYLIFF DSD 3E/13 is a powerful submersible multistage centrifugal pump designed for deep wells and boreholes, offering a much higher head (pressure) than the DSD 3/7 model, thanks to its greater number of stages.¹

The model is typically referred to as the DSD 3/13, where:²

DSD 3: Indicates a nominal flow rate around $3 \text{ m}^3/\text{h}$ and a slim profile (often $3 \text{ inch}$ or $4 \text{ inch}$ casing size).
13: Indicates thirteen impellers (stages), which is why it achieves such a high head.³
E: Likely denotes the Econo or standard range.
